CYD 2.8 inch ESP32 Marauder/Bruce Battery Upgrade Kit
Will not work with the Capacitive CYD versions. Those end in C not R. Purchase the R version.
Marauder Firmware
- ✓ LiPo Battery Support
- ✓ Battery Status I2C
- ✓ GPS Module Support
- ✓ No Soldering Required
Bruce Firmware
- ✓ LiPo Battery Support
- ✗ Battery Status I2C
- ✓ GPS Module Support
- ✓ No Soldering Required
- ESP32-2432S028R (2.8 inch) With USB-C, The one with micro only will work but it's not the newest model. Do NOT buy the capacitive version that ends in C. Only the R version works.
Don't want to mess around with soldering battery leads and GPS modules? Neither did I. This mod chip lets you add a LiPo battery, battery status over I2C, and GPS to your Cheap Yellow Display with zero soldering. Works out of the box with the ESP32 Marauder and Bruce Firmware.

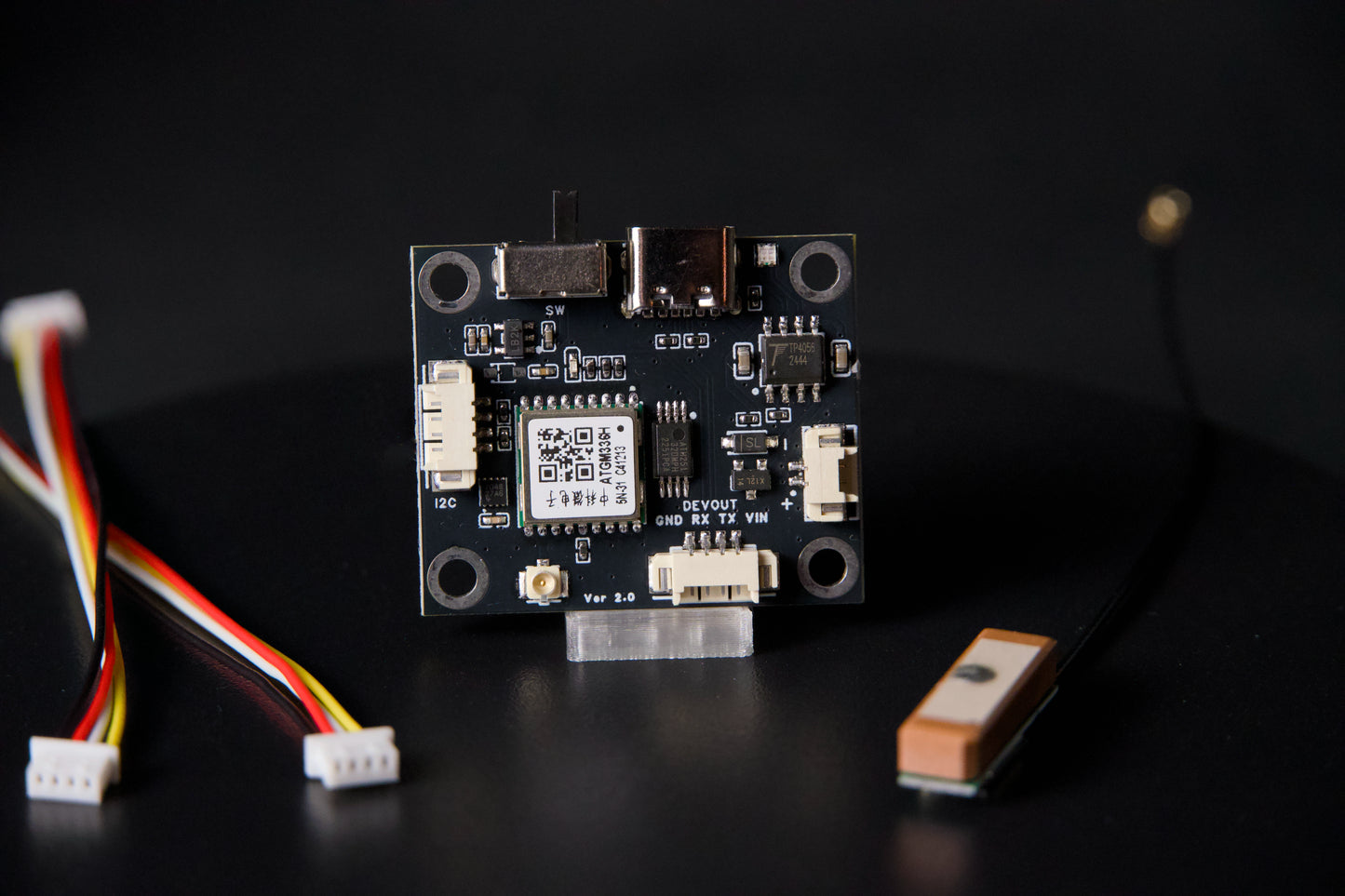

V2.0 Board Comes With:
- 2 Wires from PCB to CYD Board
- GPS Antenna (IPEX1/UF.L connection)
- PCB Charge/GPS/Battery Level Circuit
Case Kit:
- Everything above and
- PETG Case
- All Bolts and Screws
- Metal 3DS Stylus
Note: The battery is not included in this kit. Please refer to the battery links below.
Battery Links

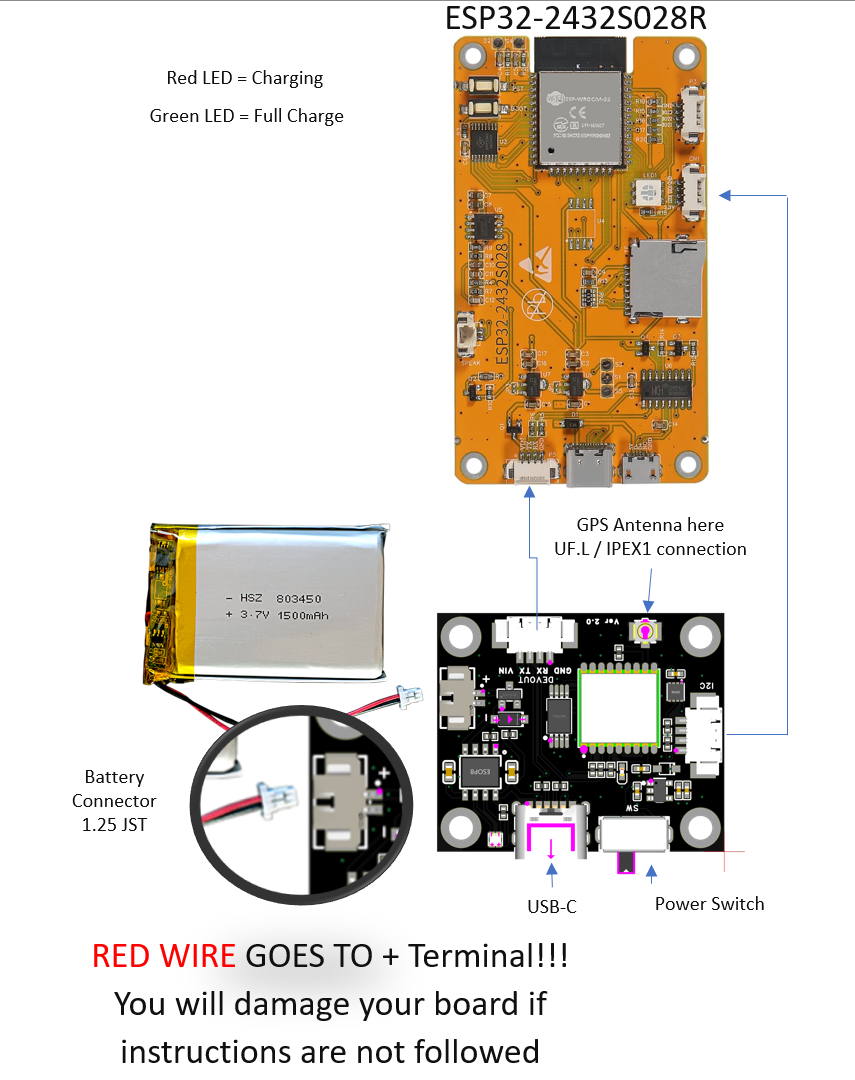

Any 3.7V lithium battery with a JST 1.25mm connector will work. If you need help finding one, here are some links! Verify battery polarity before plugging in! (Red is +, Other is -)
- Single Battery (QTY 1): 3.7V 1100mAh Lipo - Amazon
- Four-Pack (QTY 4): 3.7V 1100mAh Lipo - Amazon
Video Tutorial
Follow step-by-step instructions with ease! Watch the YouTube Tutorial
3D Printed Case
Want to print your own case? No problem! Download the Case 3D Model
Why Choose This Upgrade?
This kit is designed with accessibility in mind—no soldering required, making it approachable for all skill levels. The custom PCB eliminates the hassle of complex connections, soldering, and researching. If you don't like soldering battery leads, you'll appreciate this upgrade.
I hope you enjoy this mod as much as I enjoyed creating it! If you have any questions or need support, feel free to reach out.
Share

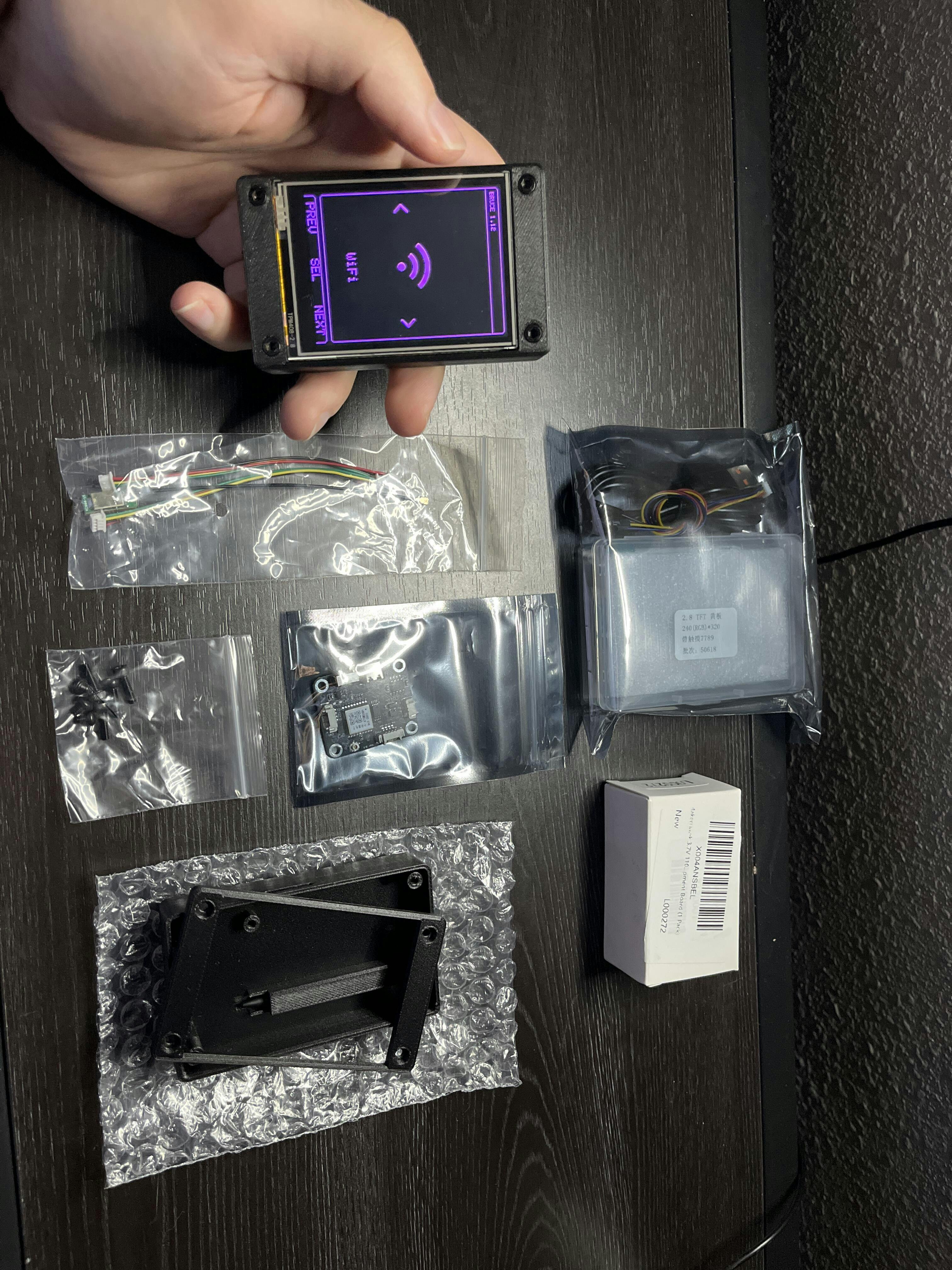

Easy to assemble, just be careful of pinching the wires. It almost feels like the case needs to be a millimeter bigger in every direction. The daughter board is snug fit, the wires need to be carefully placed. However, once you're done with that, your Cheap Yellow Display is ready for action.
